Best-in-Class Motion Clarity – The Top Choice for Global FPS Tournaments.
Compared to any other panel types, a Fast TN panel with DyAc technology provide clearer and sharper images helping you focus and avoid the distraction of unwanted afterimages caused by rapid motion.

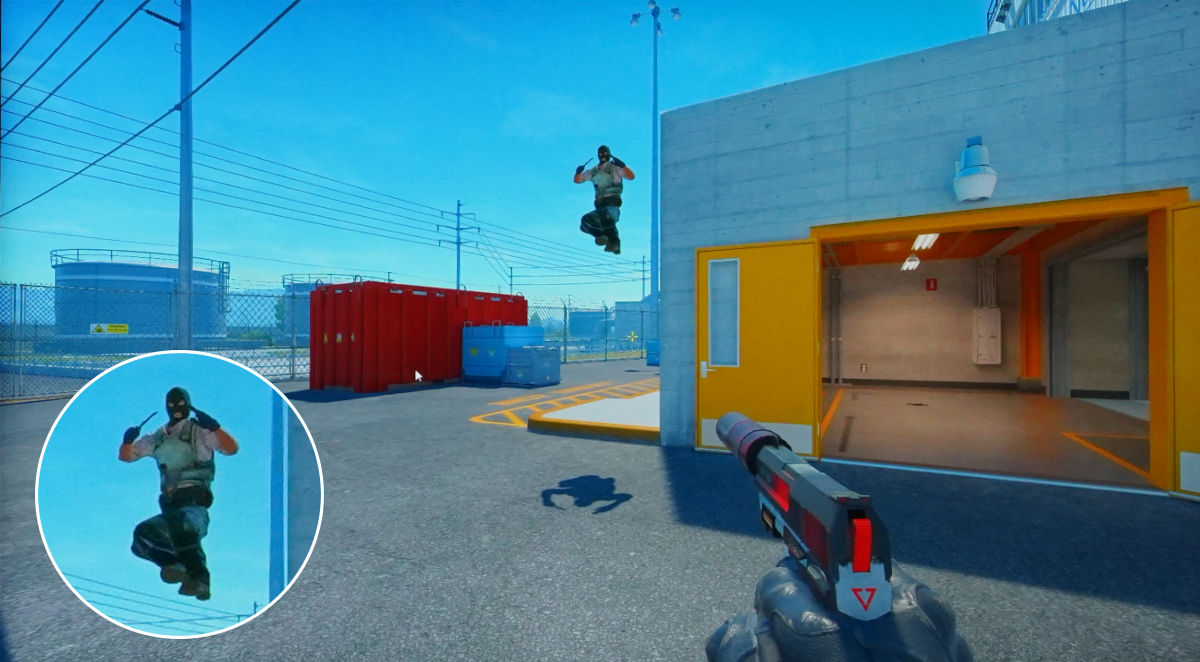

At the resolutions most commonly used by pro players (1280x960 for CS2 and 1920x1080 for VALORANT), our Fast TN panel with native FHD resolution provides better image sharpness due to different pixel arrangement, making it easier to identify the outlines of enemies.
This newly developed panel applies faster electrical conductivity design, enhancing responsiveness of the liquid crystal and reducing the overshoot more effectively.
The XL2566X+ has been meticulously redesigned to enhance color performance, offering more vibrant hues and greater clarity in identifying enemies.
Through ZOWIE’s exclusive panel hardware design, DyAc/DyAc⁺/DyAc 2 provide best in-class motion clarity and better overall visual experience.
With its dual backlight technology, DyAc 2 enhances performance in blur reduction while it offers a soft light output, facilitating eye adaptation.
Connect the DisplayPort (1.4) on your PC, as the DP port has enough bandwidth to support 400Hz. The HDMI (2.0) port supports a maximum of 240Hz. We recommend using the DP cable included in the box (which has been inspected by us) to avoid any potential compatibility issues.
For the Graphics Card, we suggest an NVIDIA RTX 30 series or an AMD RX 6000 series. For the CPU, we recommend using the 13th generation Intel or AMD Ryzen 5000 series or newer. Note: For any questions regarding the compatibility and capability of your GPU for 400Hz, please contact your graphics card manufacturer.
| LCD size (inch) | 24.1" |
|---|---|
| Aspect ratio | 16:9 |
| Max. resolution (PC/Laptop) | 1920 x 1080 at 400Hz (HDMI 2.0, DP 1.4) |
| Max. resolution (Console) | 1920 x 1080 at 120Hz for PS5 / Xbox series X/S (HDMI 2.0) |
| Refresh rate | 400Hz |
| Display area | 535.68 x 298.08 |
| Pixel pitch (mm) | 0.28 |
| Typ. brightness (cd/㎡) | 320 |
| Typ. contrast | 1000:1 |
| Panel type | TN |
| Fast liquid crystal | Yes |
| Dimensions (HxWxD mm) | 517(Highest)/ 362(Lowest) x 576 x 209 |
|---|---|
| Net weight (kg) | 5.8 |
| Gross weight (kg) | 9.7 |
| VESA wall mounting 100x100 mm | V |
|---|---|
| Swivel (left/right, °) | 45 / 45 |
| Tilt (°) | -5~35 |
| Height adjustment (mm) | 155 |
| Dynamic Accuracy | V (DyAc 2) |
|---|---|
| XL Setting to Share | V (with Auto game mode) |
| Shield | V |
| S Switch | V |
| Black eQualizer | V |
| Color Vibrance | V |
| Low Blue Light | V |
| Flicker-free | V (DyAc 2 off) |
| K Locker | V |
| Variable Refresh Rate | V (DyAc 2 off) |
